The X7 is latest Arrow Karts evolution. This kart offers braking and corner entry stability without compromising exit speed, while still performing on rubbered-up tracks. It also has improved grip in high speed cornering. This is the updated Arrow chassis design that won final round on AKC TaG Light and Summer Series Rnd 2 KA3 Junior and Senior.
Designed for the full range of classes using LeCont tyres:Junior - KA2, KA3Senior - KA3, TaG Restricted, TaG, X30FEATURES:
30/32mm chassis tubing
1037mm wheelbase
3-bearing chassis design, with 2 bearings supplied and fitted as standard. Extra bearing and carrier available to purchase separately
Multiple radiator mounting positions
DPE’s unique billet adjustable heel rest system, ensuring optimum comfort for all size drivers
Removable/adjustable front torsion bar available in four stiffnesses:Nylon Soft, Soft (supplied standard), Medium, Hard
Unique design camber/caster adjuster system, and adjustable front ride height
Wider range of Ackerman adjustment
25mm stub axles with 10mm kingpin and 80mm magnesium wheel hubs
Douglas SE black wheels
KG 509 bodywork with matte chrome Arrow graphics kit
New lower mounting bracket for Nassau panel welded to chassis
Front dropdown bumper brackets
Arrow embroidered silicon high grip steering wheel compatible with Alfano & Mychron units
Jecko Composite Silver Floor Tray

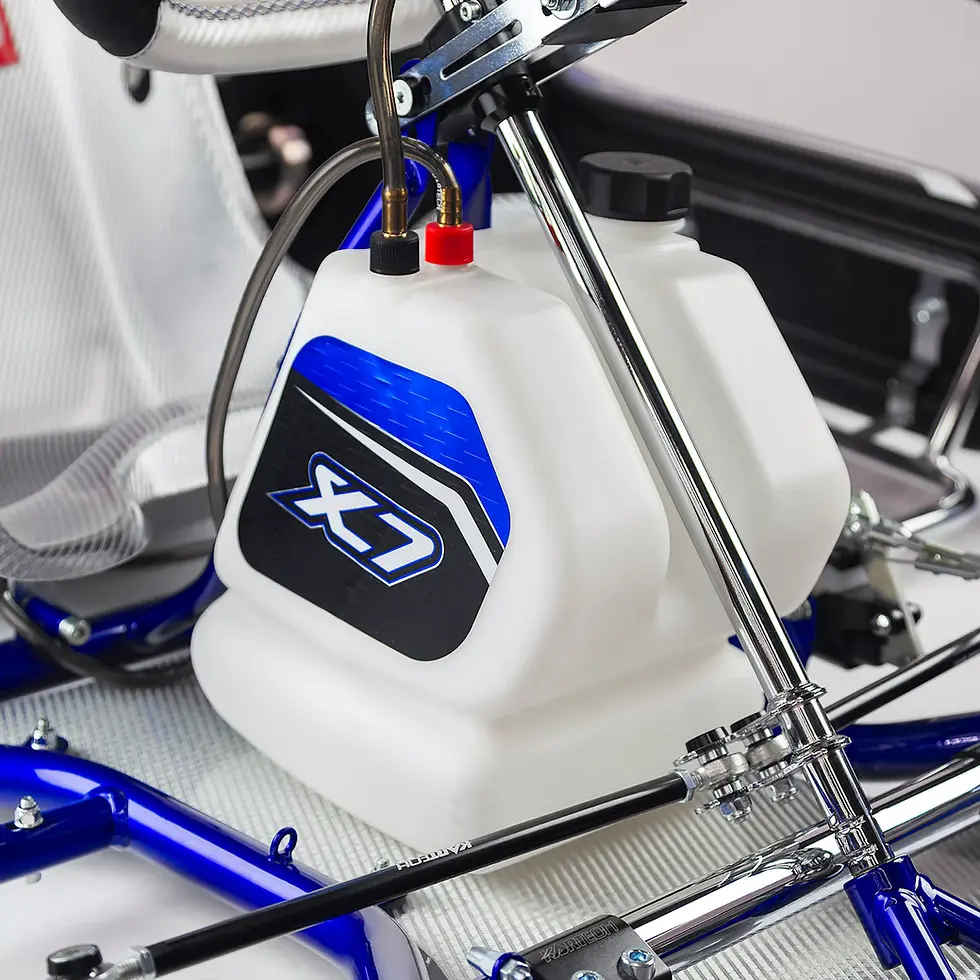

8.5L Fuel Tank
50mm medium rear axle with 90mm magnesium wheel hubs

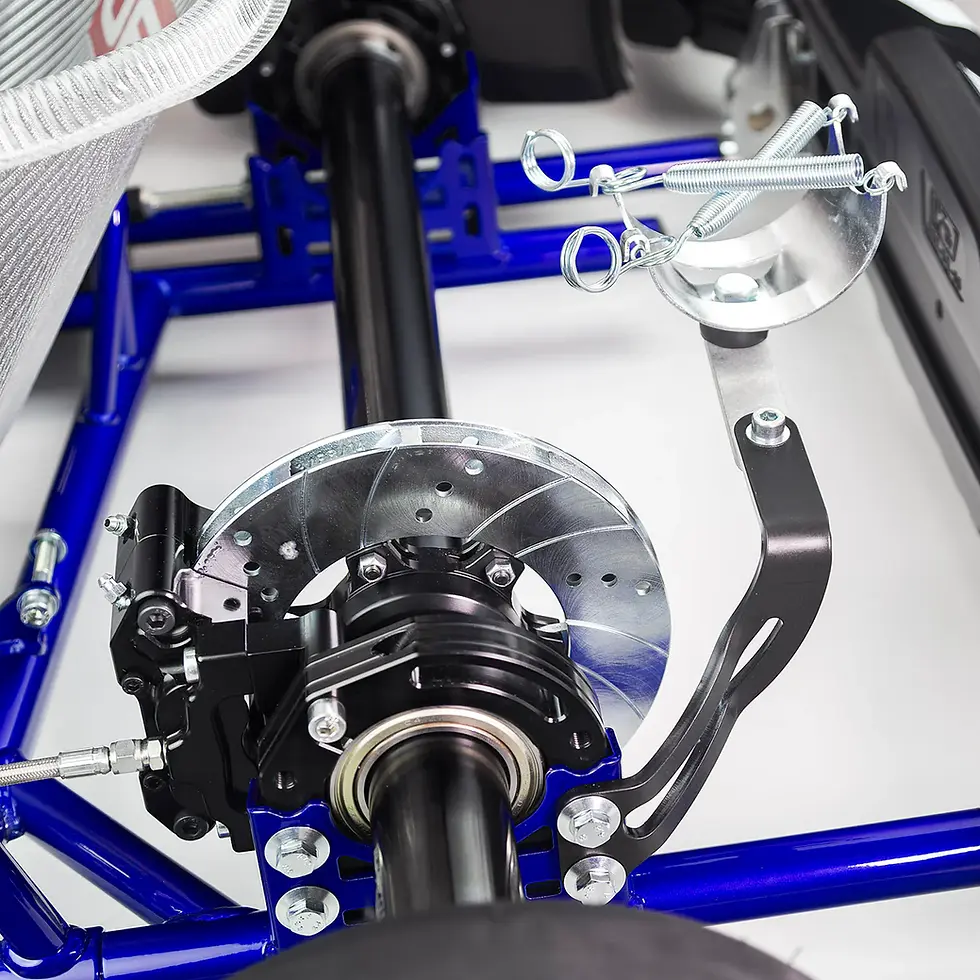

Self-adjusting radially mounted black anodised billet alloy brake caliper with floating disc
Adjustable rear ride height
Enclosed chain guard with Kartech chain guard bracket
Flat or angled top sliding engine mount system with low profile clamps
3-piece rear bumper with run loose kit.
Now includes as standard the Steering Performance Upgrade Kit (Ackerman blocks, tie rods, nylon flat torsion bar, torsion bar clamps)
